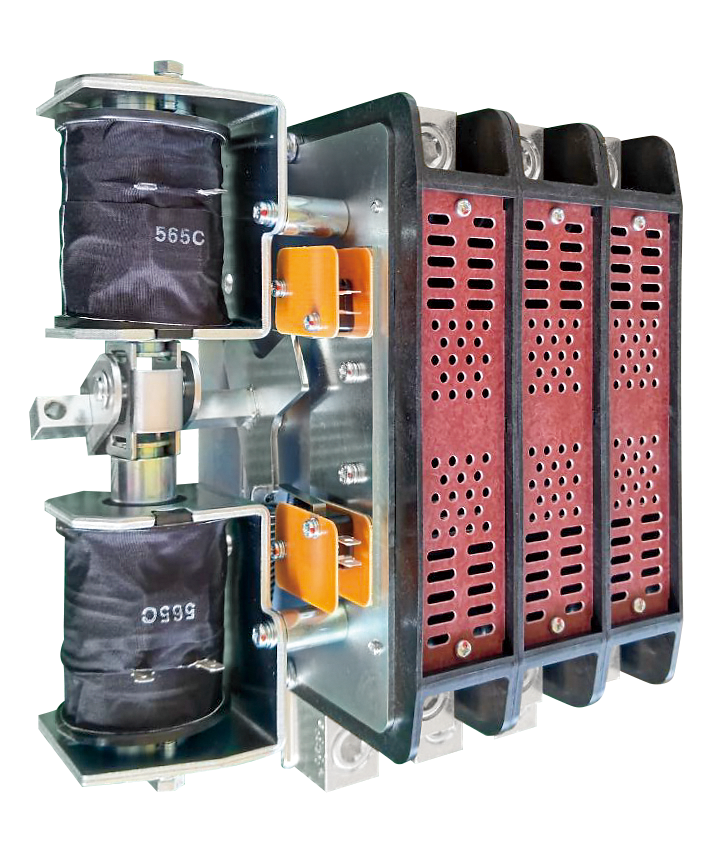

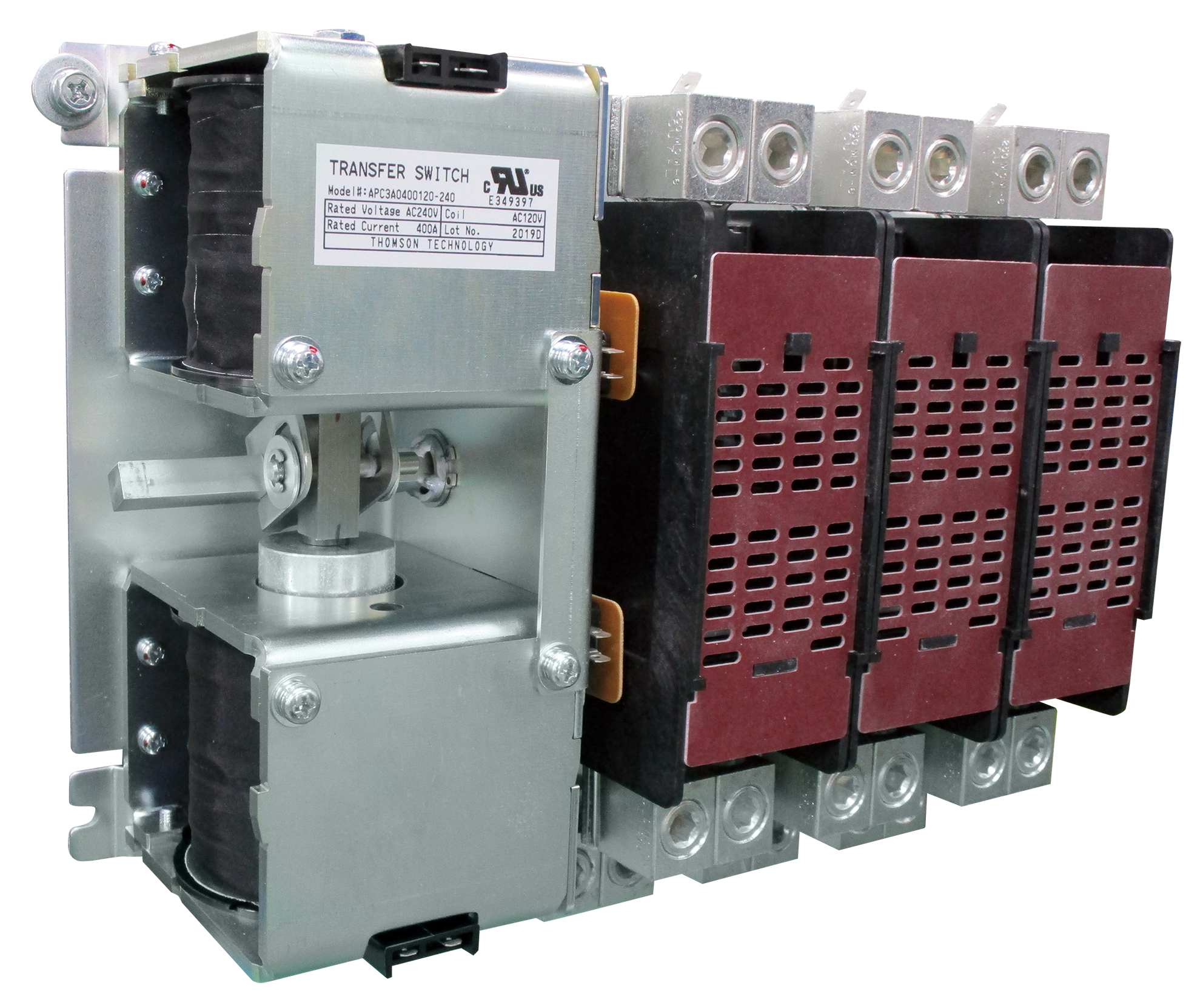

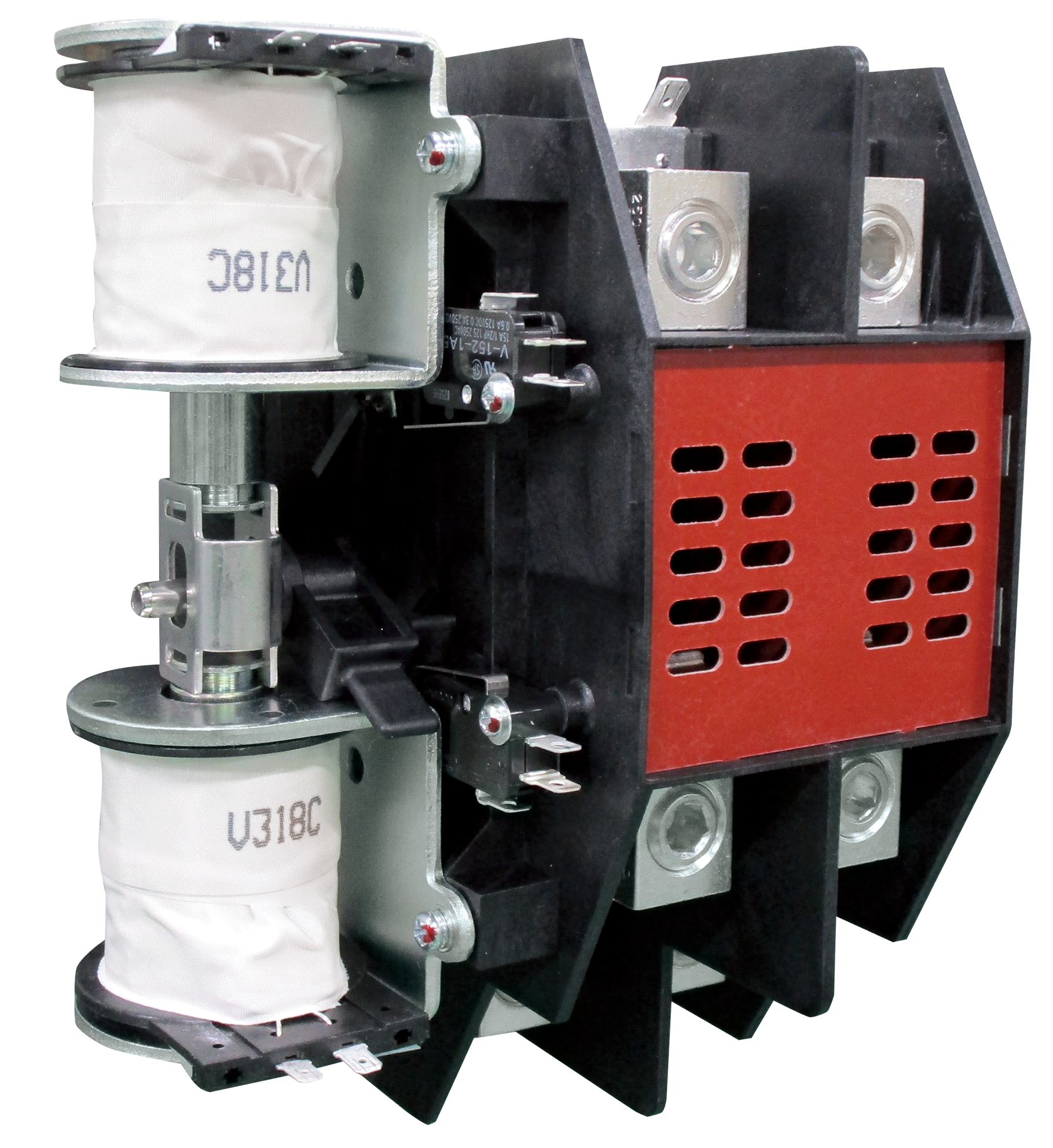

V SERIES (UL-RECOGNIZED CONTACTOR)

SERIES COMMON STANDARD SPECIFICATIONS

RATED VOLTAGE：240Vac

RATED CURRENT：100A・200A・400A

NUMBER OF POLES：2P・3P

CONNECTION：Front

KIND OF THROW：Double (switching：I⇔II)

OPERATION METHOD：Electromagnetic operation

RATED OPERATING VOLTAGE：120Vac・240Vac

　　　　　* Some models do not have this setting.

ACCESSORY：Manual handle (for only 22V3・24V type)

CERTIFICATE STANDARDS：UL1008

OPTIONS

【PRODUCTION SPECIFICATION】

・Auxiliary switches：2C (1C for each side)

【OPTIONAL ACCESSORY】

・Manual handle (for 21V2・22V2 and 21V3 type)
