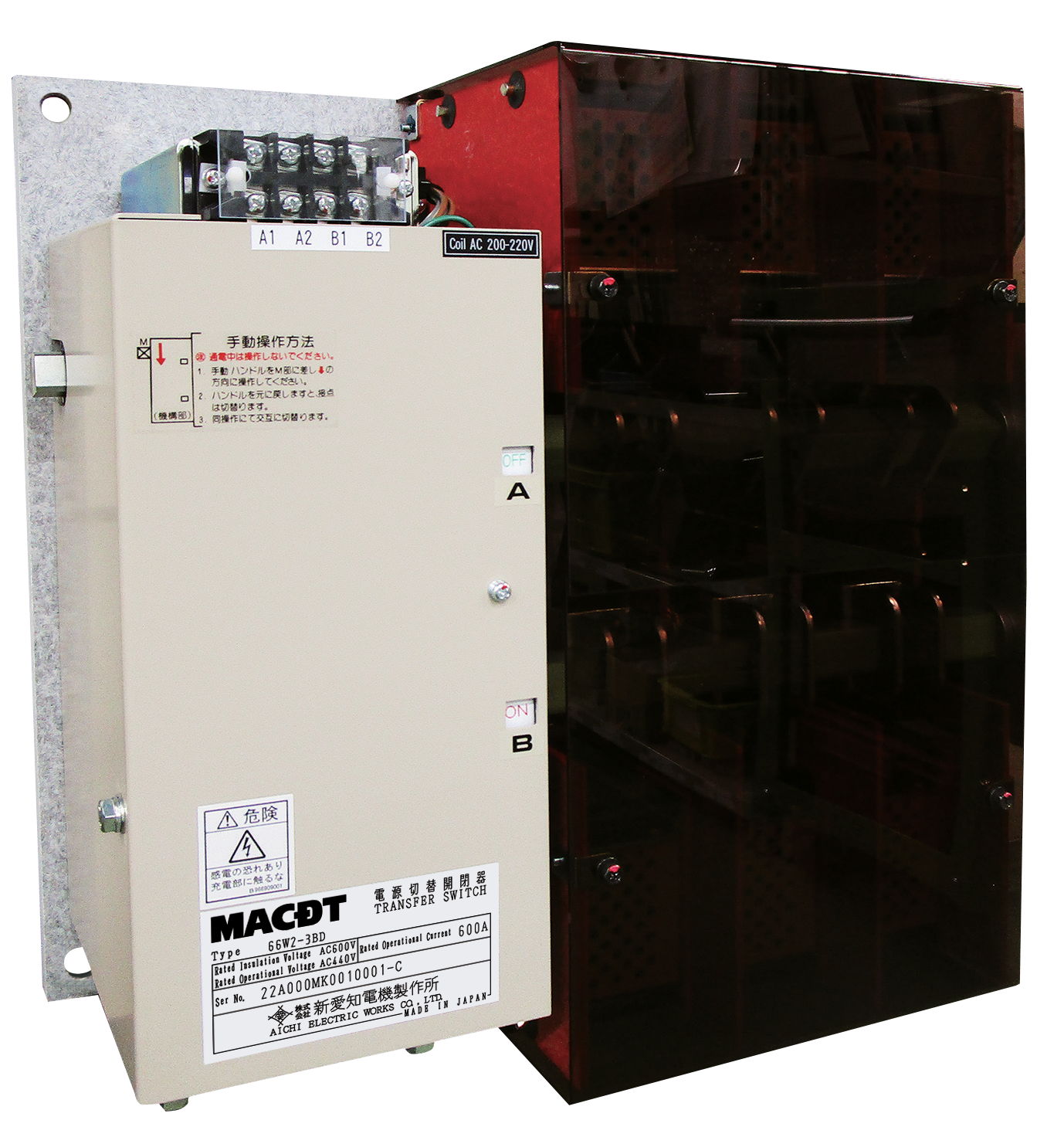

SERIES COMMON STANDARD SPECIFICATIONS
RATED INSULATION VOLTAGE：600Vac
RATED OPERATIONAL VOLTAGE：440Vac
RATED OPERATIONAL CURRENT：60A・100A・200A・400A・600A・800A・1000A・1200A・1600A
NUMBER OF POLES：2P・3P・4P
CONNECTION：Front・Back
KIND OF THROW：Double (switching：I⇔II)
OPERATION METHOD：Electromagnetic operation
RATED OPERATING VOLTAGE：100/110Vac, 200/220Vac, 100/110Vdc
AUXILIARY SWITCHES：2C (1C for each side)
ACCESSORIES：Main terminal cover (for only 60A~400A front connection), Manual handle, Surge absorber
OPTIONS
【PRODUCTION SPECIFICATIONS】
・Main circuit load side terminals exposed at the top (400A or less)
・Recessed type (400A or less・with flush plate)
・Auxiliary switches：4C (2C for each side)
【OPTIONAL ACCESSORIES】
・Main circuit terminal cover (for 600A~1600A front connection)
・Handle holder
