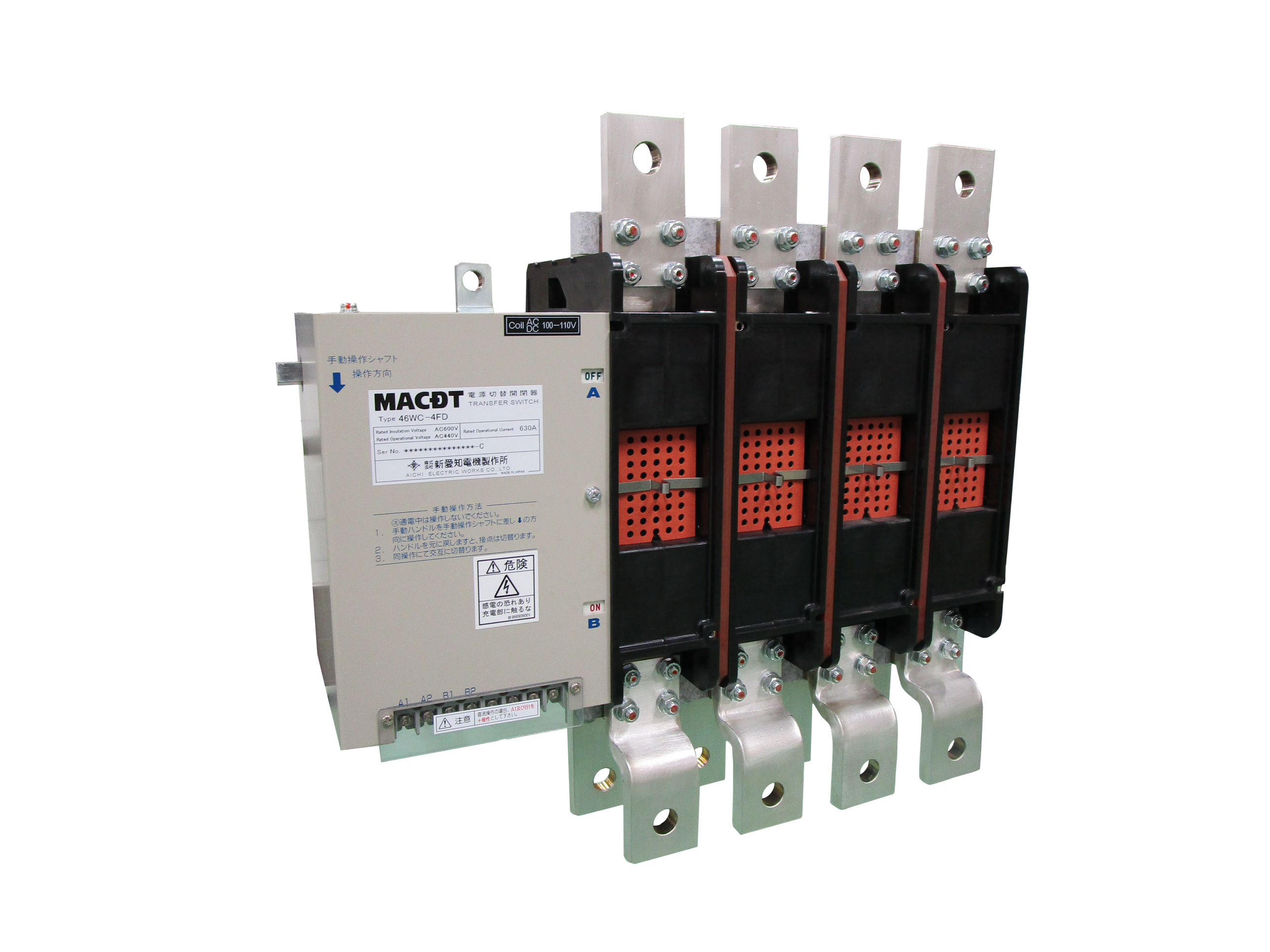

SERIES COMMON STANDARD SPECIFICATIONS
RATED INSULATION VOLTAGE：600Vac
RATED OPERATIONAL VOLTAGE：440Vac
RATED OPERATIONAL CURRENT：150A・300A・500A・630A
NUMBER OF POLES：2P・3P・4P
CONNECTION：Front・Back
KIND OF THROW：Double (switching：I⇔OFF⇔II)
OPERATION METHOD：Electromagnetic operation
RATED OPERATING VOLTAGE：100/110Vac, 200/220Vac, 100/110Vdc
AUXILIARY SWITCHES：2C (1C for each side)
ACCESSORIES：Main terminal cover (for only front connection), Manual handle, Surge absorber
OPTIONS
【PRODUCTION SPECIFICATIONS】
・Main circuit load side terminals exposed at the top
・Auxiliary switches：4C (2C for each side)
【OPTIONAL ACCESSORY】
・Handle holder
