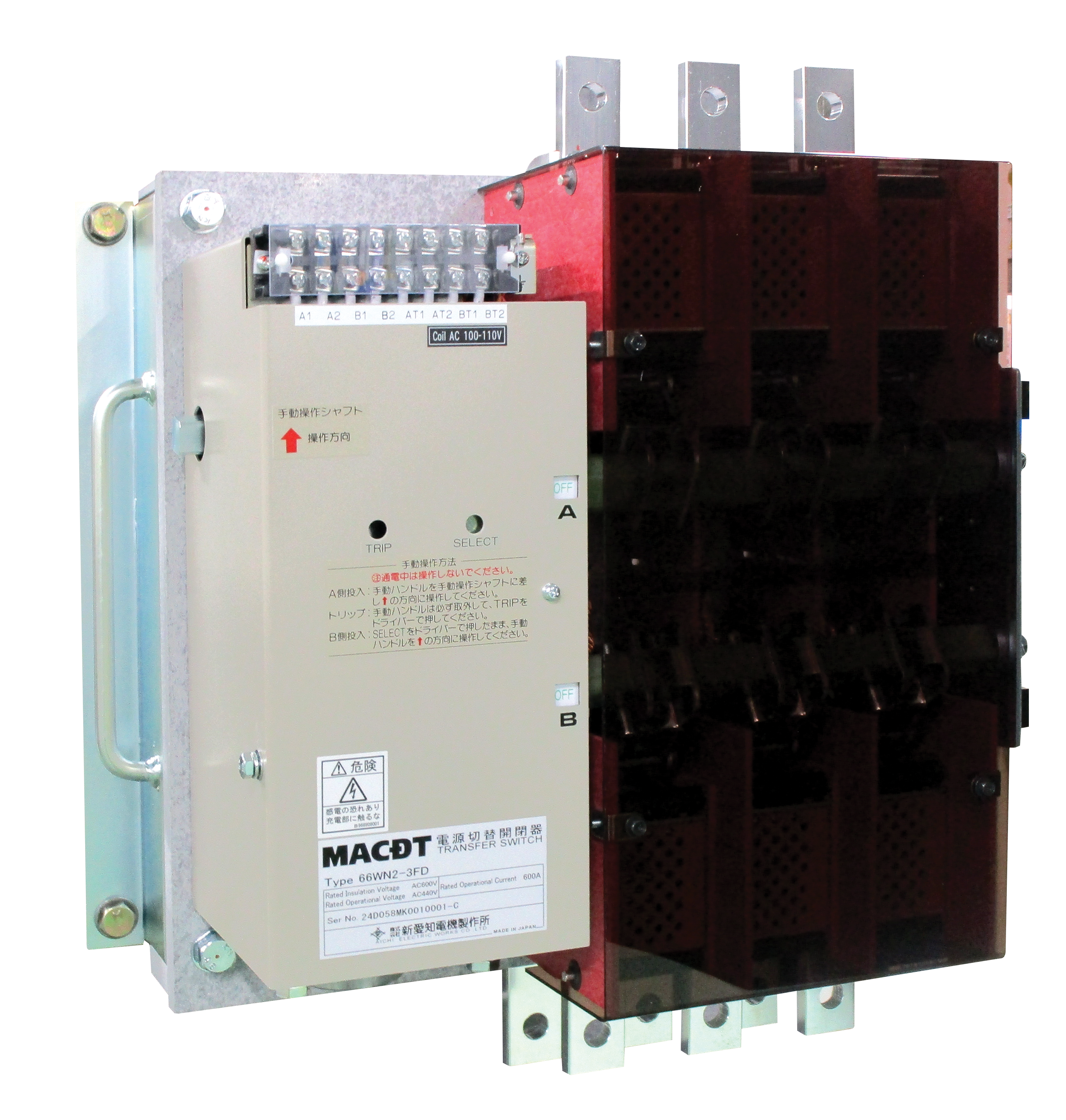

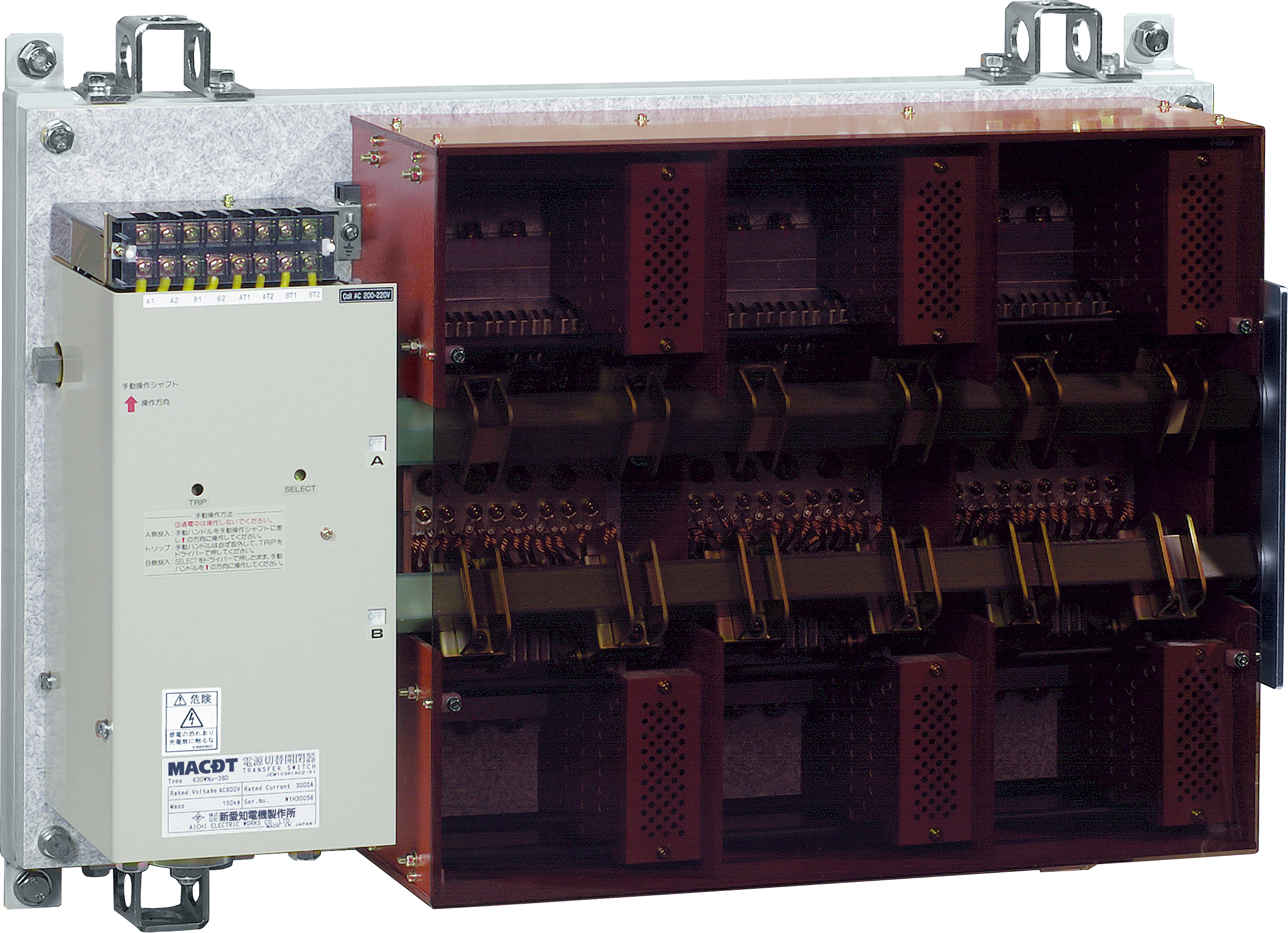

SERIES COMMON STANDARD SPECIFICATIONS
RATED INSULATION VOLTAGE：600Vac
RATED OPERATIONAL VOLTAGE：440Vac
RATED OPERATIONAL CURRENT：100A・200A・400A・600A・800A・1000A・1200A・1600A・2000A・3000A
NUMBER OF POLES：2P・3P・4P
CONNECTION：Front・Back
KIND OF THROW：Double (switching：I⇔OFF⇔II)
OPERATION METHOD：Electromagnetic operation
RATED OPERATING VOLTAGE：100/110Vac, 200/220Vac, 100/110Vdc
AUXILIARY SWITCHES：2C (1C for each side)
ACCESSORIES：Main terminal cover (for only 100A~400A front connection), Manual handle, Surge absorber
OPTIONS
【PRODUCTION SPECIFICATIONS】
・Main circuit load side terminals exposed at the top (400A or less)
・Auxiliary switches：4C (2C for each side)
【OPTIONAL ACCESSORIES】
・Main circuit terminal cover (for 600A~1600A front connection)
・Handle holder
