SERIES COMMON STANDARD SPECIFICATIONS
RATED INSULATION VOLTAGE：250Vac
RATED OPERATIONAL VOLTAGE：220Vac
RATED OPERATIONAL CURRENT：30A・50A・75A・100A・200A・300A・400A
NUMBER OF POLES：2P・3P・4P

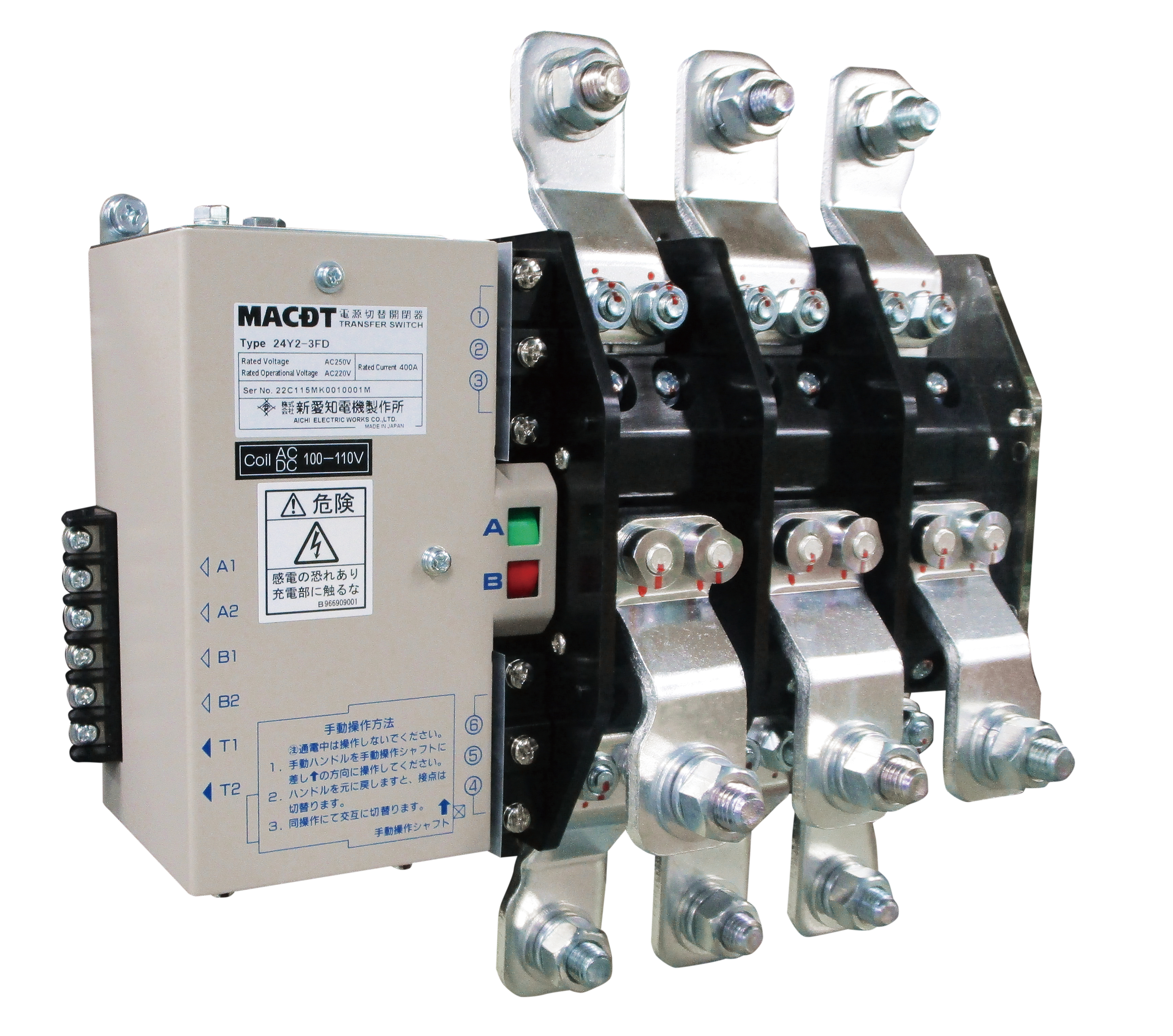

CONNECTION：Front・Back
KIND OF THROW：Double (switching：I⇔II)
OPERATION METHOD：Electromagnetic operation
RATED OPERATING VOLTAGE：100/110Vac, 200/220Vac, 100/110Vdc
AUXILIARY SWITCHES：2C (1C for each side)

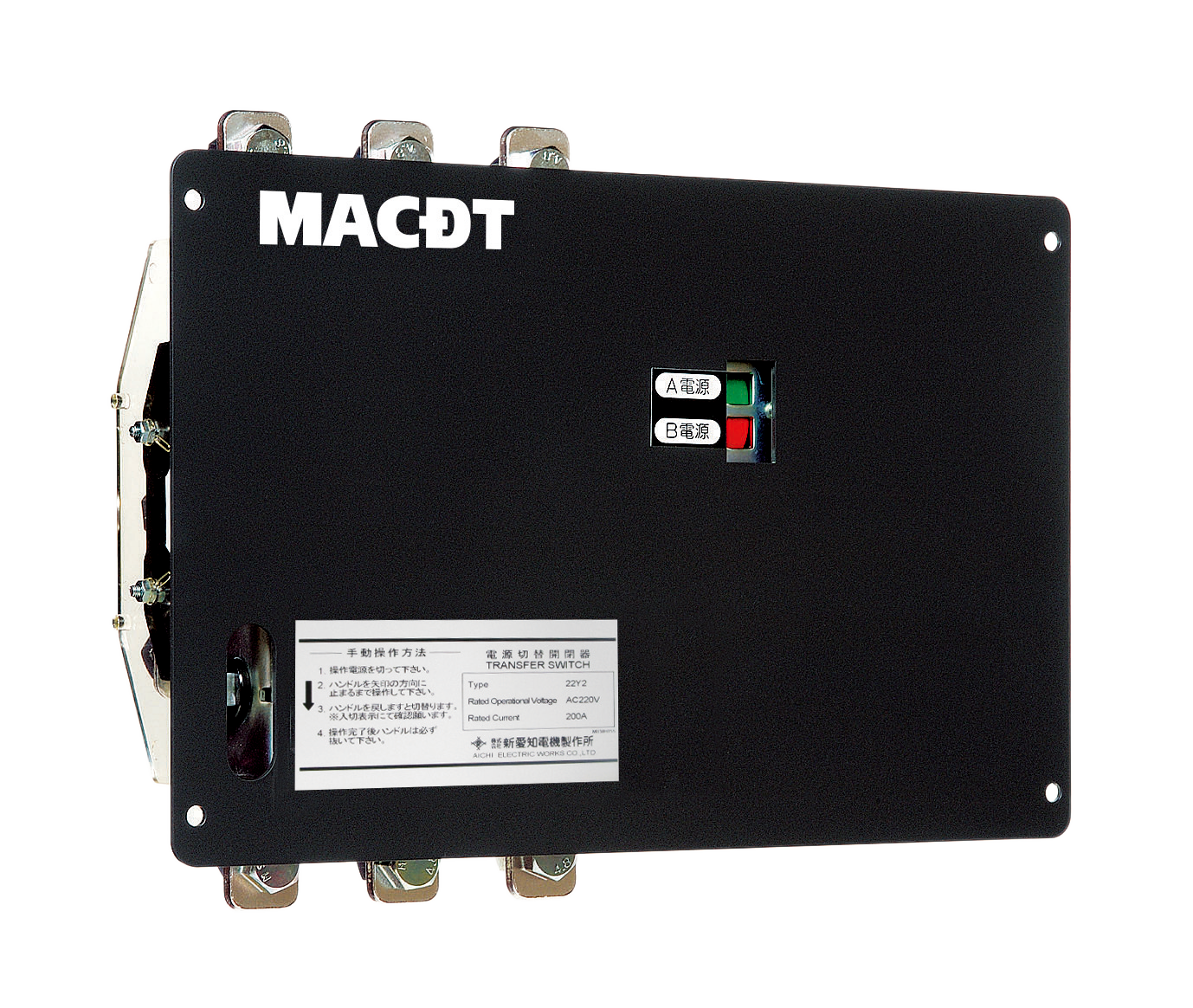

ACCESSORIES：Main terminal cover (for only front connection), Manual handle, Surge absorber, Flush plate (for only back connection)
OPTIONS
【PRODUCTION SPECIFICATION】
・Main circuit load side terminals exposed at the top (100A or more)
・No auxiliary switch (AUX) (75A or less)
【OPTIONAL ACCESSORIES】
・Handle holder
・Limiting resistance (for pause at the neutral position)
